TV Logic 5.6”

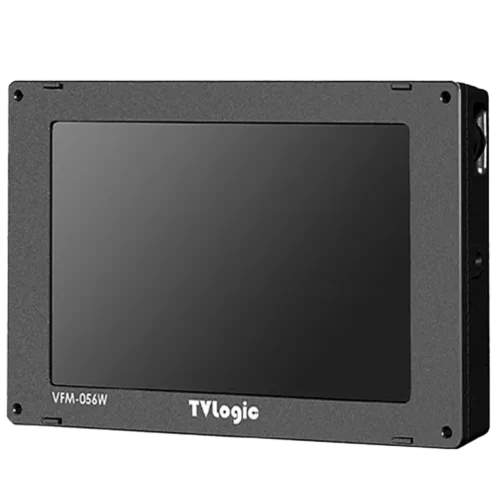

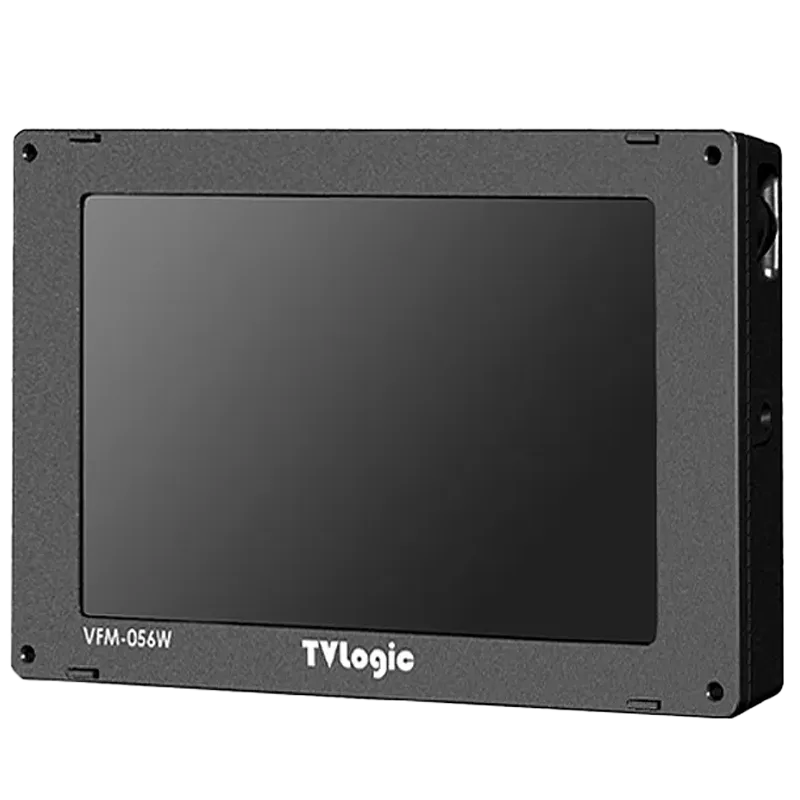

The TV Logic 5.6” Lightweight Compact Viewfinder Monitor packs a lot of functionality into a convenient slim form-factor that won’t unbalance a small camera rig. The VFM-056WP holds a 1280×800 LCD display and will accept video from most common sources, with Composite, S-Video, Component, HDMI, and 3G-SDI input compatibility. For using HDSLRs in a more professional capacity, the HDMI signal can be converted and looped through the SDI output—at 720p resolution—for connecting to pro-level monitors or other on-set or studio equipment.


Display Size = 5.6″ / 14.2 cm

Active Area – 4.76 x 2.99″ / 120.96 x 75.60 mm

Screen Resolution – 1280 x 800

Aspect Ratio – 16:10

Viewing Angle

Horizontal: 170°

Vertical: 170°

Maximum Brightness – 300 nits / cd/m2

Contrast Ratio – 500:1

Dot Pitch – 0.0945 x 0.0945 mm

Bit Depth / Color Support – 6-Bit+FRC (16.7 Million Colors)

Image Controls – Blue Only, Focus Peaking, Pixel-to-Pixel Zoom, Waveform
