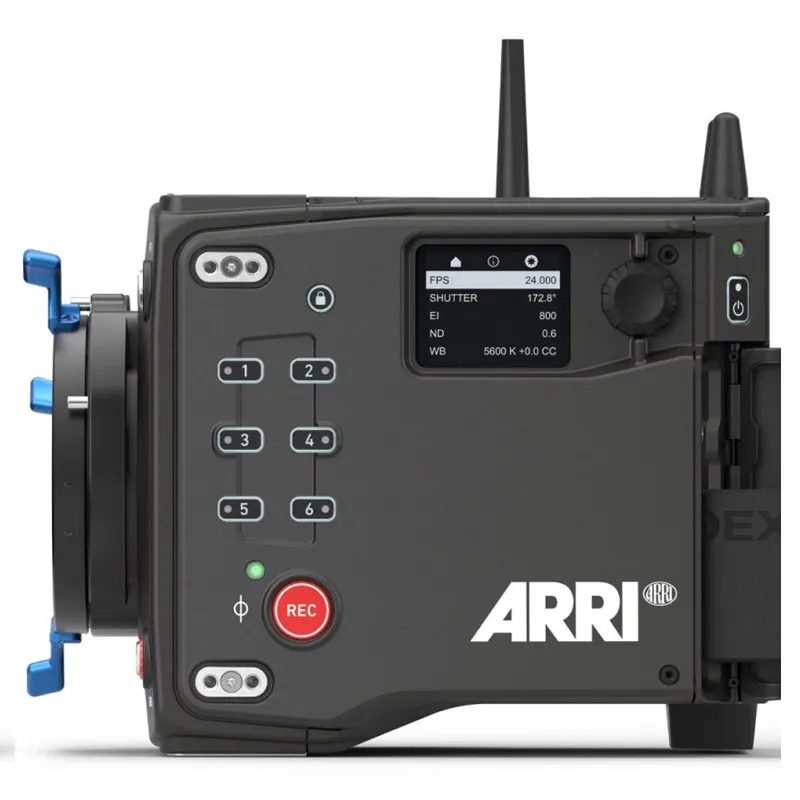

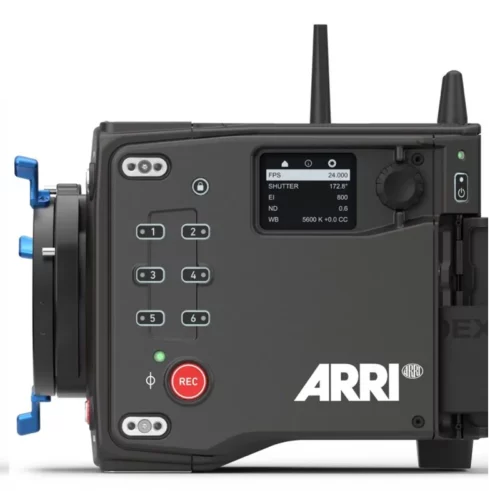

ALEXA 35 is the smallest fully featured ARRI production camera ever, packing the features and processing power of a larger ALEXA into a Mini-sized body that can record native 4K at up to 120 fps. Fast and easy operation is assured through numerous usability improvements and a simple menu structure that will be intuitively familiar to crews. ALEXA 35 is the best A-camera, B-camera, and action camera on the market, all rolled into one.
| Sensor Modes | Active Image Area (Dimensions) |
Image Circle Ø |
Active Image Area (Photosites) |
Recording Resolution (Pixel) |
Max fps* (1TB/2TB Drive) |
|---|---|---|---|---|---|
| 4.6K 3:2 Open Gate | 28.00 X 19.20 mm 1.102 x 0.756 “ |
33.96 mm 1.337 |
4608 X 3164 | 4.6K (4608 X 3164) | 35 / 75fps (ArriRaw) 60 / 60fps (Apple ProRes) |
| 4.6K 16:9 | 28.00 X 15.70 mm 1.102 X 0.618 |
32.10 1.264″ |
4096 X 2304 | 4.6K (4608 X 2592) | 45 / 75 fps (ArriRaw) 75 / 75 fps (Apple ProRes) |
| 4K 16:9 | 24.90 x 14.00 mm 0.980 x 0.551″ |
28.57 mm 1.125″ |
4096 x 2304 | 4K (4096 x 2304)
UHD (3840 x 2160) |
55 / 120 fps (ARRIRAW) 100 / 100 fps (Apple ProRes) 120 / 120 fps (Apple ProRes) 120 / 120 fps (Apple ProRes) 120 / 120 fps (Apple ProRes) |
| 4K 2:1 | 24.90 x 12.40 mm 0.980 x 0.490 |
27.82 mm 1.095″ |
4096 x 2048 | 4K (4096 x 2048) | 65 / 120 fps (ARRIRAW) 120 / 120 fps (Apple ProRes) |
| 3.3K 6:5 | 20.22 x 16.95 mm 0.796 x 0.693″ |
26.38 mm 1.039″ |
3328 x 2790 | 3.3K (3328 x 2790) | 55 / 100 fps (ARRIRAW) 75 / 75 fps (Apple ProRes) |
| 3K 1:1 | 18.70 x 18.70 mm 0.737 x 0.737 |
26.45 mm 1.041″ |
3072 x 3072 | 3K (3072 x 3072)
3.8K 2:1 Ana. 2x (3840 x 1920) |
55 / 100 fps (ARRIRAW) 90 / 90 fps (Apple ProRes) 100 / 100 fps (Apple ProRes) |
| 2.7K 8:9 | 16.70 x 18.70 mm 0.656 x 0.738″ |
25.09 mm 0.988″ |
2743 x 3086 | UHD 16:9 Ana. 2x (3840 x 2160) | 100 / 100 fps (Apple ProRes) |
| 2K 16:9 S16 | 12.40 x 7.00 mm 0.490 x 0.276″ |
14.24 mm 0.561″ |
2048 x 1152 | 2K (2048 x 1152) | 120 / 120 fps (Apple ProRes) |
