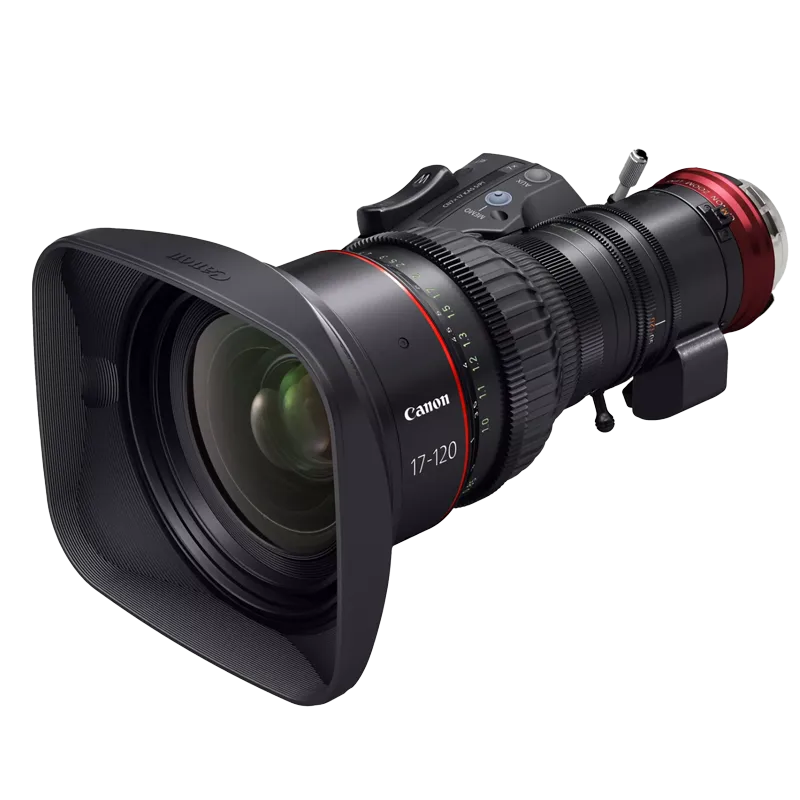

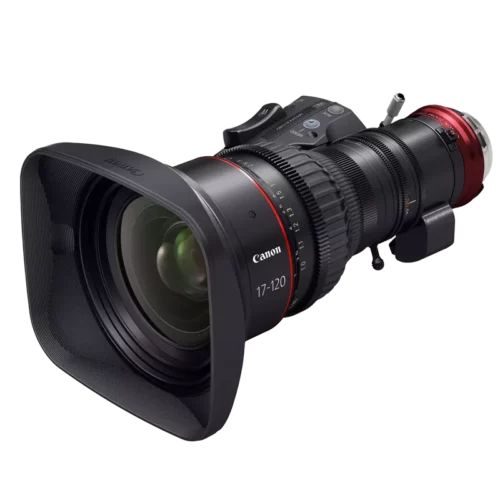

The Canon 17-120 Servo T2.95-3.9 lens provides cinematographers and broadcast operations with a compact, lightweight design (only 6.4 lbs.) using Canon optical elements, while offering outstanding performance and reliability in professional shooting environments.
The new lens is fully 4K-ready, with a high optical resolution and support for Super35mm large-format cameras. An 11-blade aperture diaphragm helps ensure an artistic and beautiful representation of out-of-focus areas (or “Bokeh”).
The lens also features a high 7x zoom magnification, wide focal length range of 17mm to 120mm, and a 180º smooth rotating focus ring. Acknowledging that broadcasters often need to control zoom, focus and iris/aperture in different ways than filmmakers, Canon has developed this zoom lens with full external servo control for drama, documentary and other broadcast productions.
The servo drive unit is compatible with industry-standard protocols for control from a number of lens controllers including Canon’s standard broadcast lens controllers (ZSD-300D/FPD-400D) and multiple industry standard cinema lens controllers. The drive unit can be easily removed for cinema-style shoots and can be easily re-attached without any manual re-alignment. A 16-bit metadata output enables connection to virtual studio systems.
Also available in EF mount.
Focal Length – 17 to 120mm
Lens Mount – Canon EF/PL
Lens Format Coverage – Super35/APS-C
Maximum Aperture – T2.95 to 3.9
Diagonal Angle of View – Super35: 87.2 to 14.1°
Minimum Focus Distance – From : 2.8′ / 0.85 m
Diaphragm Blades – 11
Front Diameter – 114 mm
Zoom Ratio – 7x
Image Stabilization – No
Dimensions (W x H) – 6.9 x 4.9″ / 175.3 x 124.5 mm
Length – 10.4″ / 263 mm
Weight – 6.4 lb / 2.9 kg
