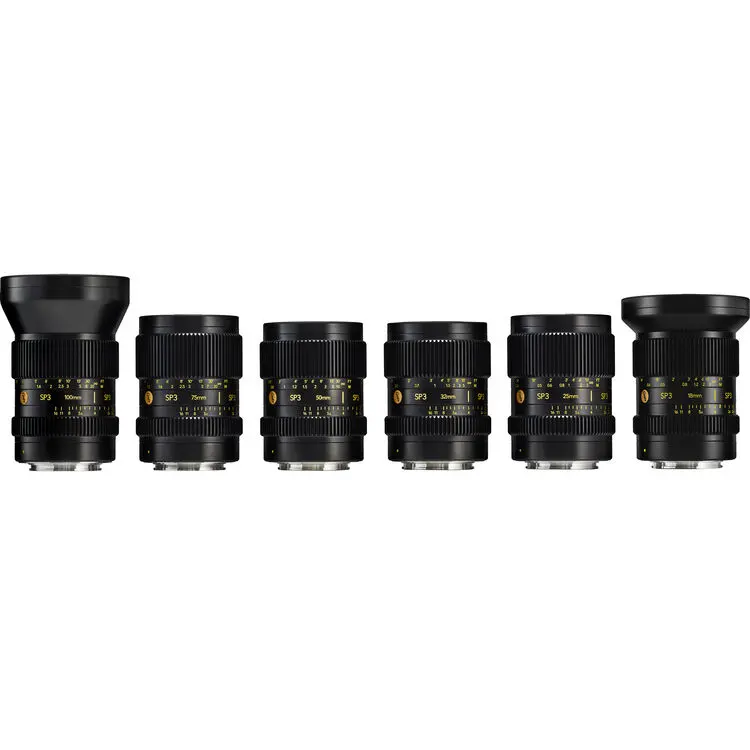

Cooke SP3 Prime Lenses 18,25,32,50,75,100 PL mount

Cooke SP3 T2.4 Full-Frame Prime Lens (Sony E, Feet/Meters) Enhance your mirrorless camera capture with outstanding optical performance using the SP3 18mm T2.4 Full-Frame Prime Lens from Cooke. Based on the storied Speed Panchro lenses, the SP3 primes are optically and mechanically optimized for full-frame mirrorless cameras. These tough yet lightweight and compact lenses feature focus and iris mechanics aligned across the series, enabling quick lens changes when using matte boxes and FIZ (focus/iris/zoom) systems. Each lens in the series matches the Cooke Panchro/i Classic series, enabling you to use the SP3 primes as a “B” or “C” camera drone or gimbal solution that complements your “A” camera footage.

Categories: Cooke, Lenses, Prime Lenses

Description

SP3 — Basic Specification

Specifications	18mm	25mm	32mm	50mm	75mm	100mm
T-Stop Range	T2.4 – T16	T2.4 – T16	T2.4 – T16	T2.4 – T16	T2.4 – T16	T2.4 – T16
Angular Rotation of Iris Scale	78°	78°	78°	78°	78°	78°
Min. Marked Object Distance	250 mm / 10 in	250 mm / 10 in	350 mm / 13 in	500 mm / 20 in	800 mm / 3 ft	800 mm / 3 ft
Close Focus from Lens Front	123 mm / 3.14 in	139 mm / 5.5 in	223 mm / 8.8 in	394 mm / 15.5 in	689 mm / 27.1 in	663 mm / 26.1 in
Angular Rotation to MOD Endstop	160°	160°	160°	160°	160°	160°
Length (Front to Mount, E-mount)	109 mm / 4.84 in	98 mm / 3.85 in	94 mm / 3.7 in	94 mm / 3.7 in	98 mm / 3.85 in	124 mm / 4.88 in
Max. Front Diameter	82 mm / 3.29 in	64 mm / 2.52 in	64 mm / 2.52 in	64 mm / 2.52 in	64 mm / 2.52 in	82 mm / 3.22 in
Max. Diagonal Angle of View (FF)	99.72°	81°	69°	47°	32°	25°
Max. Diagonal Angle of View (S35)	81.65°	62°	50°	34°	22°	17°
Total Weight (with mount)	688 g / 1.51 lbs	575 g / 1.27 lbs	520 g / 1.15 lbs	500 g / 1.10 lbs	520 g / 1.15 lbs	690 g / 1.52 lbs
Screw-In Filter	M77 x 0.75	M58 x 0.75	M58 x 0.75	M58 x 0.75	M58 x 0.75	M77 x 0.75

Additional Information

Maximum Format Cover: Full Frame (optimized for 43.3 mm)
Focus Scales: Dual Focus, non-linear Imperial + Metric
Focus Drive Gear: 83-tooth, 0.8 mod
Iris Scales: Non-linear, whole + third stops
Iris Drive Gear: 83-tooth, 0.8 mod
Mount Options: E, RF, L, M (additional mounts free via Cooke website)

Version: 090224 — Cooke Optics Limited, Leicester, UK
