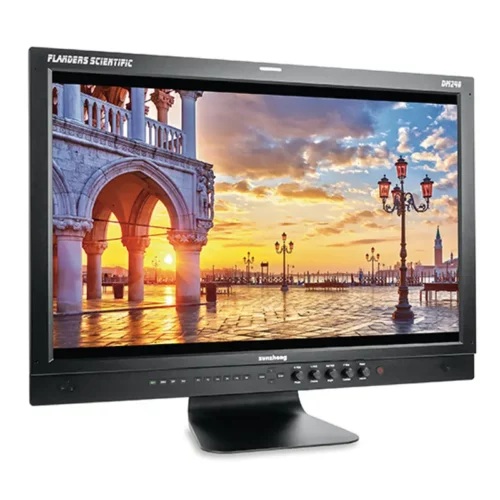

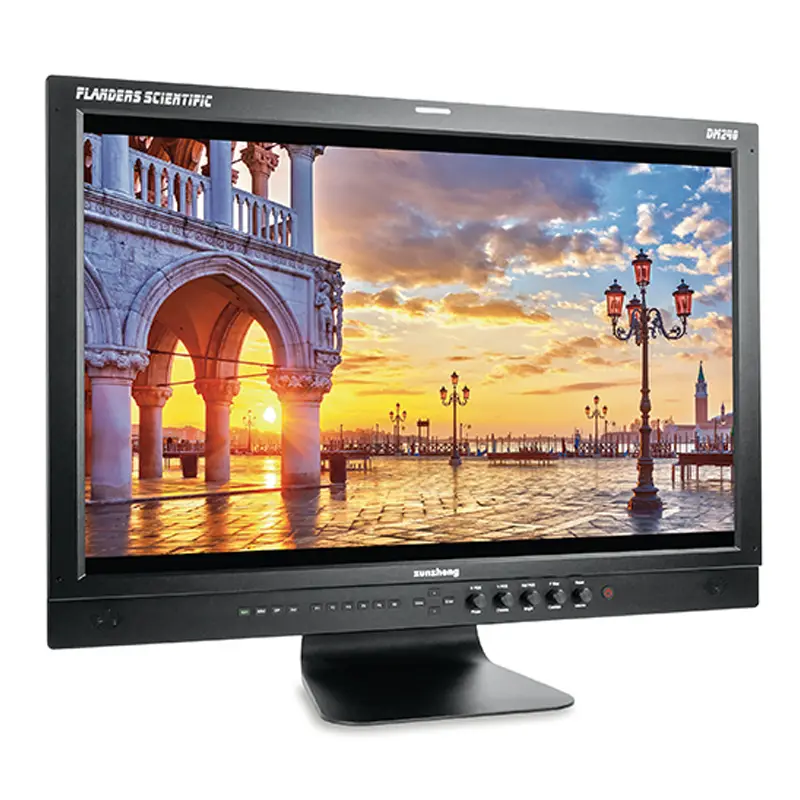

Flanders DM240 24”

The Flanders DM240 uses an SDR version of the backlight technology found in the XM310K and XM311K with a very similar spectral power distribution. This means that the DM240 is an exceptional perceptual match to these HDR monitors. For Dolby Vision Mastering and other HDR workflows requiring monitoring of both HDR and SDR signals the DM240 allows you to confidently compare signals knowing that the differences you see between HDR and SDR monitors are attributable primarily to the grade and not caused by fundamental differences in technology type.

Description

  • Display Size: 24 in
  • Display Size: 2 ft
  • Brightness (candela): 450 cd/m2
  • Communication Formats: ITU-R BT.656 (PAL) SMPTE-125M SMPTE-274M SMPTE-296M SMPTE-372M SMPTE-425M-AB – Level A & Level B supported – Level B supports 2 x SMPTE 292M image format mapping 372M image format mapping RGB, YCbCr, & XYZ supported 12 & 10bit 4:2:2 1920x1080p (60/59.94/50) 4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98) 12 & 10bit 4:4:4 1920x1080i (60/59.94/50) 12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/24PsF/23.98/23.98PsF) 12 & 10bit 2k (2048×1080) (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF) *XYZ mapped to Selected Color Gamut on Display Alignment Menu DVI-Analog & DVI-Digital VGA (640×480) NTSC (720×480) SVGA (800×600) XGA (1024×768) SXGA (1280×1024) DVI Digital Only 1280×720, 1440×900, 1920×1080
  • Communication Ports: LAN, GPI, RS-232. RS-485, 3G/HD/SD-SDI
  • Contrast Ratio: 1500
  • Input Cards: 3Gbps/Dual Link/HD/SD-SDI
  • Lamp Type: Wide Gamut LED
  • Output Cards: 3Gbps/Dual Link/HD/SD-SDI
  • Wireless: No
  • AC Voltage (Maximum): 240 Volts
  • AC Voltage (Minimum): 100 Volts
  • Active Power: 29 Watt
  • DC Voltage: 12 Volts
  • Product Weight: 13.40 lbs
