Odyssey 7.7 “ 7Q (+)

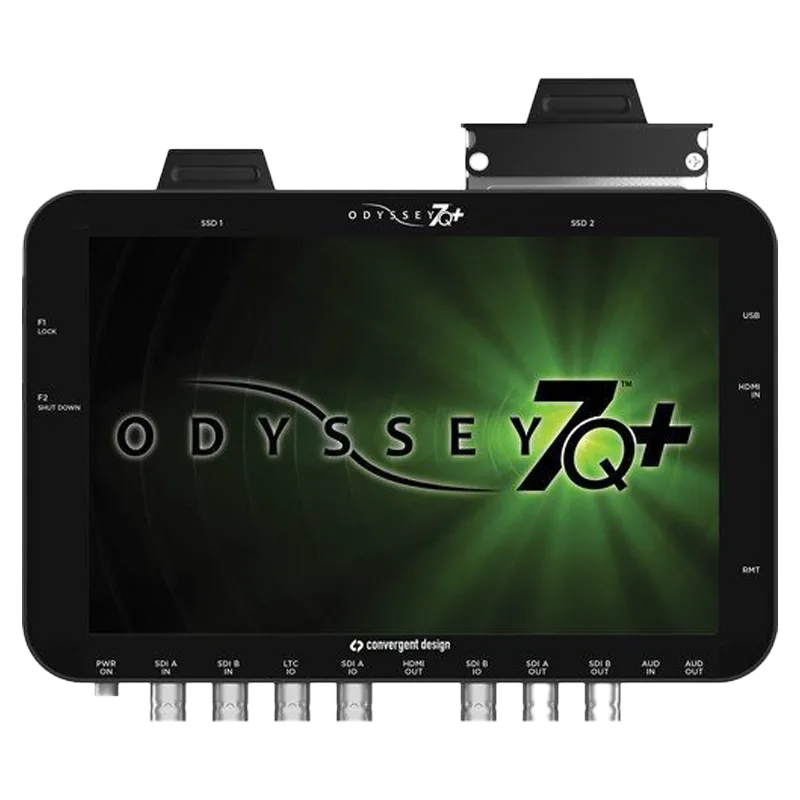

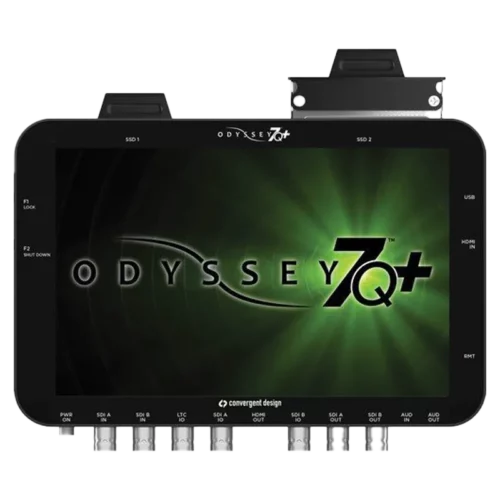

Convergent Design introduces the Odyssey7Q+, an upgraded version of the Odyssey7Q monitor/recorder, now with added 4K recording support via HDMI. Sporting a 7.7″ OLED touchscreen display boasting a resolution of 1280 x 800 and a striking 3400:1 contrast ratio, it delivers true blacks and professional-grade monitoring features including waveform, histogram, vectorscope, anamorphic de-squeeze, and 3D LUT support. Out of the box, the Odyssey7Q+ records up to DCI 4K (4096 x 2160) and Ultra HD (3840 x 2160) in Apple ProRes 422 HQ format or up to 2K/1080p in uncompressed DPX format. The included Titan Extract option enables the creation of multiple HD windows from a single 4K source.

Equipped with two 3G-SDI inputs (6G-SDI compatible with firmware v2016.01), two 3G-SDI outputs, and two versatile bi-directional 3G-SDI connectors, assignable as inputs or outputs via menu settings. Additionally, it offers a 4K-ready HDMI input and an HDMI output supporting up to 1080p30 4:2:2. Most connectivity ports are located at the bottom, while the sides feature 1/4″-20 mounting threads. Dual SSD slots accommodate Convergent Design Premium 2.5″ SSDs, renowned for their speed, reliability, and power-loss protection, with select Samsung SSDs also supported for cost-effective recording. The device comes with an AC adapter for power, with optional battery plates available for enhanced portability. Also included are a 36″ Micro HDMI to HDMI cable and a HDMI to Mini HDMI adapter, facilitating compatibility with DSLRs and mirrorless cameras featuring Micro HDMI outputs.

Description

Display
Panel Type – OLED
Display Size – 7.7″ / 19.5 cm
Screen Resolution – 1280 x 800
Viewing Angle
Horizontal: 176°
Touchscreen – Yes
Contrast Ratio – 3400:1
Bit Depth / Color Support – 8-Bit (16.7 Million Colors)

Here’s the information presented in a text format:

Recording:

  • Camera Trigger: SDI, HDMI
  • Encoding Formats:
    • 4096 x 2160:
      • ProRes 422 HQ, 422, LT 10-Bit 4:2:2 at up to 60 fps
      • DNxHD 10-Bit 4:2:2 at up to 60 fps
    • 3840 x 2160:
      • ProRes 422 HQ, 422, LT 10-Bit 4:2:2 at up to 60 fps
      • DNxHD 10-Bit 4:2:2 at up to 60 fps
    • 2048 x 1080:
      • ProRes 422 HQ, 422, LT 10-Bit 4:2:2 at up to 60 fps
      • DNxHD 10-Bit 4:2:2 at up to 60 fps
    • 1920 x 1080:
      • DPX 12-Bit 4:4:4 at up to 30 fps
      • DPX 10-Bit 4:4:4 at up to 60 fps
      • ProRes 4444 XQ 12-Bit 4:4:4 at up to 60 fps
    • 1280 x 720:
      • ProRes 422 HQ, 422, LT 10-Bit 4:2:2 at up to 60 fps
      • DNxHD 10-Bit 4:2:2 at up to 60 fps
  • Recording Media: 2 x 2.5″ SSD (SATA III)

Power:

  • DC Input Power: 6.5 to 34 VDC
  • Battery Type: No
  • Power Consumption:
    • 8 W (Typical)
    • 15 W (Maximum)

Environmental:

  • Operating Temperature: 14 to 104°F / -10 to 40°C
  • Storage Temperature: -4 to 128°F / -20 to 70°C
