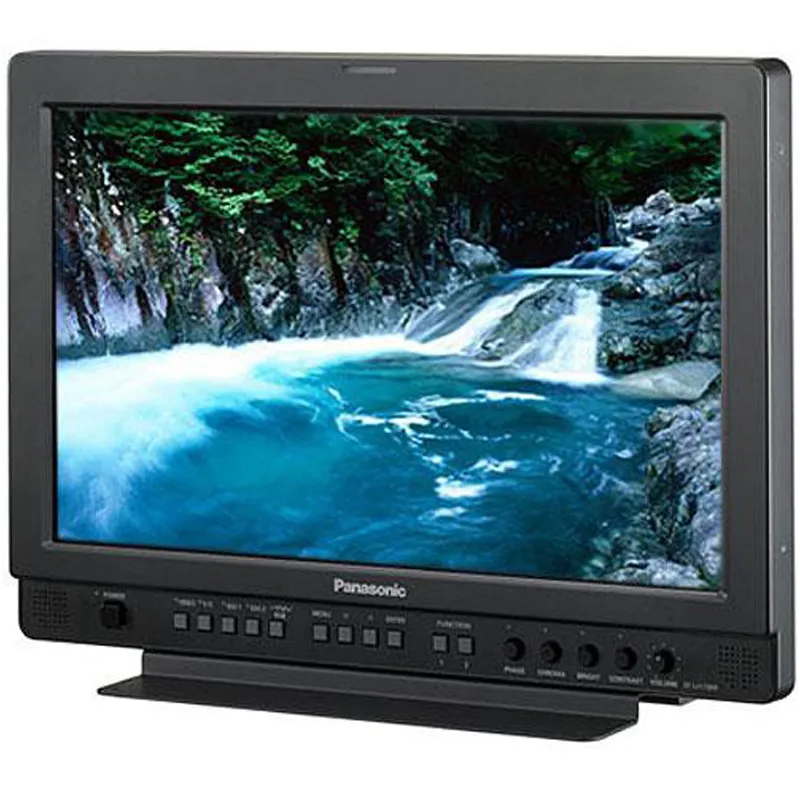

Panasonic BT-LH1710W LCD 17″

The Panasonic BT-LH1710W is a 17″ widescreen monitor engineered for broadcast and studio use. Leveraging advanced processing technology, it delivers image reproduction with color and contrast qualities previously associated with CRT monitors. This model excels in displaying all HDTV formats and frame rates, while also offering compatibility with NTSC and PAL systems.


LCD Size: 17″
Video System: NTSC/PAL
Picture Elements: 1280 x 768
Input and Output Connectors:

  • Composite: BNC (x1 Input, x1 Output)
  • Component: BNC (x2 Input)
  • HD/SD-SDI: BNC (x2 Input, x1 Output)
  • Sync: BNC (x1 Input With Loop Output)
  • VD: BNC (x1)
  • DVI-D with HDCP: DVI (x1 Input)
  • Audio: Pinjack (x2)
  • Headphone Output: 1/8″ Stereo Mini (x1)
  • GPI: 9-Pin DSub
  • RS-232C: 9-Pin DSub

Picture Controls: Brightness, Color
Remote Control: RS-232C, GPI
Viewing Angle: 178°

Power Requirements:

  • 100-240VAC, 50/60Hz
  • 11-17VDC
    Power Consumption: 4.0A
