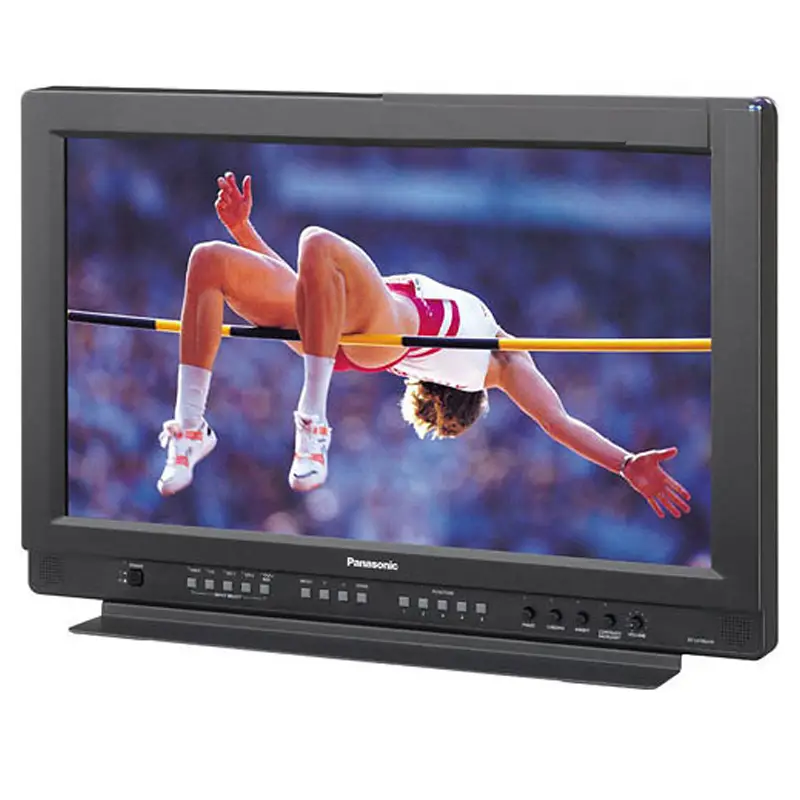

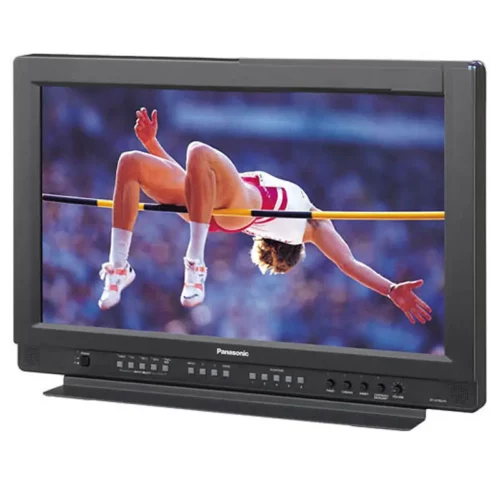

Panasonic BT-LH2600 26″

The Panasonic BT-LH2600W is a 26″ true 16:9 widescreen HD monitor tailored for broadcast and studio environments. Leveraging advanced processing technology, it achieves color and contrast reproduction akin to CRT monitors, elevating image quality. This model excels in displaying all HDTV formats and frame rates, and it’s compatible with both NTSC and PAL systems. Panasonic has integrated additional features like Pixel-to-Pixel technology and embedded audio tools, enhancing its functionality and versatility for professional applications.



Studio, Broadcast

LCD Size


Maximum Resolution

1366 x 768

Color Temperature Pre-Sets

5600k, 6500k, 9300k, Full Custom 3000k to 9300k Selectable

Input and Output Connectors

SDI Video- BNC (x 2 input, 1 output)
Component Video- 4-BNC (x 1 input, 1 output)
S-Video- 4-Pin (x 1 input, 1 output)
Composite Video- BNC (x 2 input, 1 output)
Audio- RCA (x 2 input)
RS-232C Control- 15-Pin (x 1)
GPI- 15-Pin (x 1)

Set-Up Features

Blue Gun
H/V Delay

Power Requirements

100 to 240 VAC, 50/60 Hz

Power Consumption

124W (10A)


26.5 x 18.2 x 10.8″
66.3 45.52 x 27.0 cm


36.7 lbs
17.1 kg
