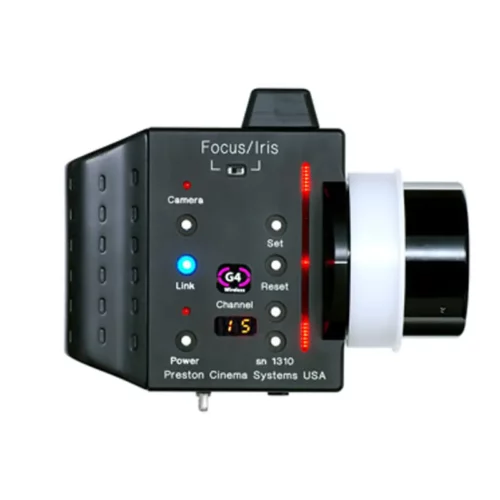

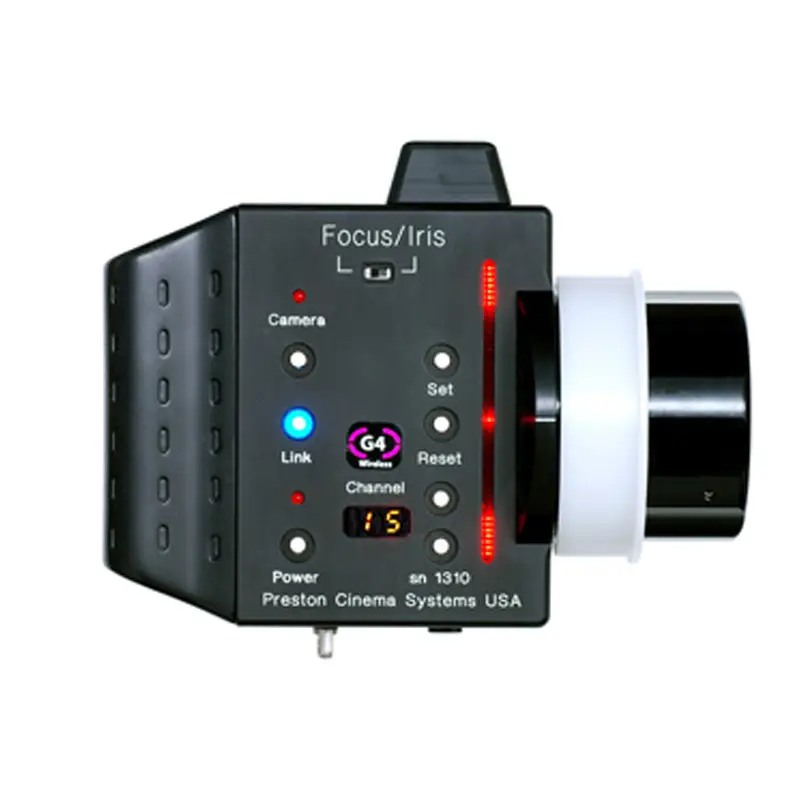

The Focus/Iris (F/I) unit is a wireless, single channel control. It can be used with the FI+Z system to take over the Iris or Focus function from the FI+Z Hand unit. When the F/I unit is powered, the FI+Z motor driver recognizes its presence and gives it control of either the Focus or Iris function of the FI+Z Hand unit as selected by the user.
The module has a bright LED bargraph display of lens position. End limits can be set with the touch of a button and are shown as illuminated bars. A tri-color LED is used to indicate signal strength. Additional LED displays show the radio channel, power /battery status, and camera run/stop indication.
Additionally, this unit can also be used in conjunction with the Radio Dimmer unit (p/n 5010) to control both LED Eye-Lights as well as Kino Flo lamps.
A soft urethane grip makes for comfortable operation and solid ergonomics. Marking discs slide over the knob onto an index pin. Power is provided by a FM-500H Li-Ion battery, allowing for approximately 8 hours of operation.
Specifications:
Size:155mm x120mm x 71mm ( 6.7″ x 4.7″ x 2.8″ )
Weight: .66kg (24 oz)
Typical operating time: 8 hours
Battery Type 7.4V 1.6AH (FM50 enhanced type)
Charger: Sony BC-VM50 with US standard line plug. Operating voltage 100 240 VAC.
Charge time: 4.5 Hours
Antenna: Integral type
