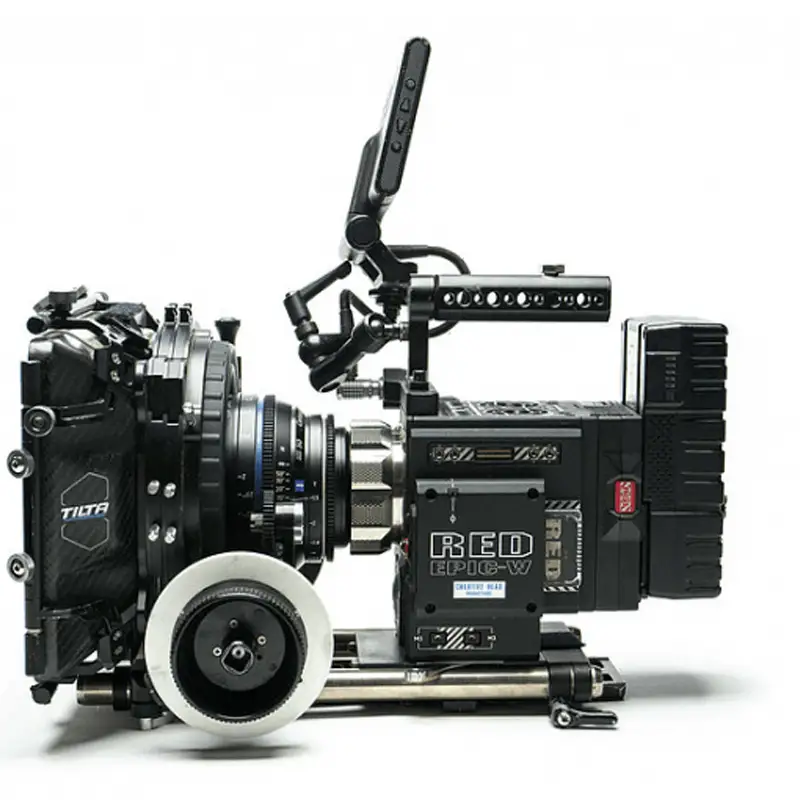

Red 5K GEMINI S35 Sensor
The GEMINI 5K Super 35mm sensor features dual sensitivity modes. Use Standard mode for conventional shooting scenarios. Switch to Low Light mode for increased sensitivity, but without the increased noise floor commonly found through signal manipulation.
| SENSOR TYPE | GEMINI 15.4 Megapixel Dual Sensitivity CMOS |
| EFFECTIVE PIXELS | 5120 x 3000 |
| SENSOR SIZE | 30.72 mm x 18.0 mm (Diagonal: 35.61 mm) |
| DYNAMIC RANGE | 16.5 Stops |
| MAX DATA RATES | Up to 300 MB/s using RED MINI-MAG (480GB & 960GB) Up to 225 MB/s using RED MINI-MAG (120GB & 240GB) |
| REDCODE SETTINGS RANGE FROM 2:1 UP TO 22:11 |
3:1 REDCODE at 5K Full Height (5120 x 3000) and 24 fps 6:1 REDCODE at 5K Full Height (5120 x 3000) and 60 fps 2:1 REDCODE at 5K Full Format (5120 x 2700) and 24 fps 8:1 REDCODE at 5K Full Format (5120 x 2700) and 96 fps 2:1 REDCODE at 4K Full Format (4096 x 2160) and 24 fps 6:1 REDCODE at 4K Full Format (4096 x 2160) and 120 fps |
| REDCODE RAW ACQUISITION FORMATS2 |
5K Full Height 1.7:1 (5120 × 3000), 5K Full Height 6:5 (3600 × 3000), and Ana 2x, 1.3x 5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x |
| APPLE PRORES | ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 30 fps ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps |
| WEIGHT | 3.35 lbs (BRAIN with Integrated Media Bay) |
| AUDIO | Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz |
| MONITOR OUTPUTS | 3G-SDI (HD-SDI) and HDMI with DSMC2 expander module 1080p RGB or 4:2:2, 720p RGB or 4:2:2 480p RGB or 4:2:2 (HDMI only) SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
GEMINI 5K S35
15.4 Megapixel Dual Sensitivity CMOS Sensor
30.72 mm x 18 mm (Diagonal: 35.61 mm)
96 fps at 5K Full Format (5120 × 2700)
75 fps at 5K Full Height 1.7:1 (5120 × 3000)
