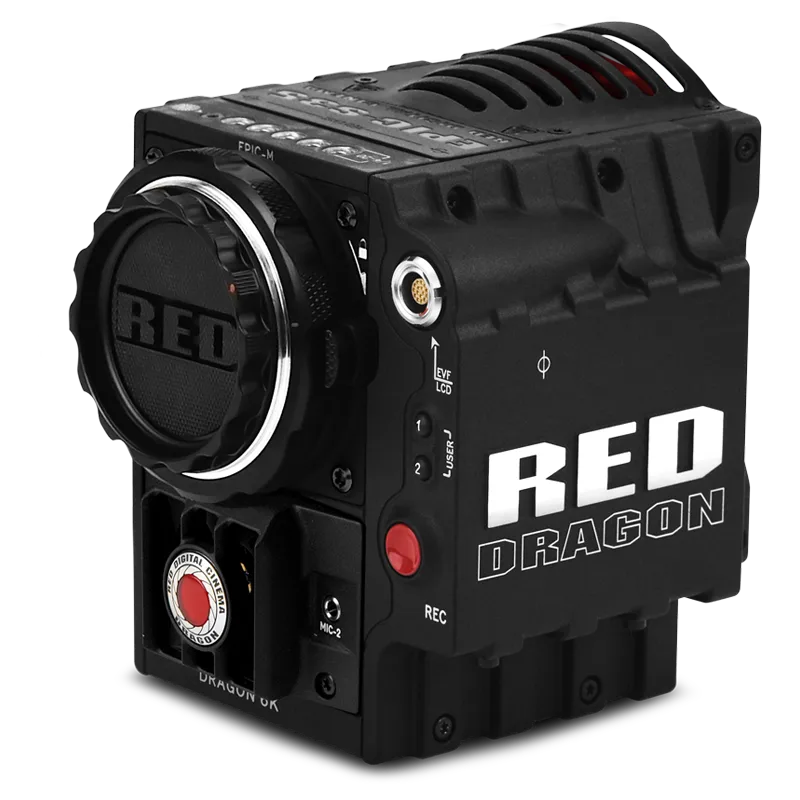

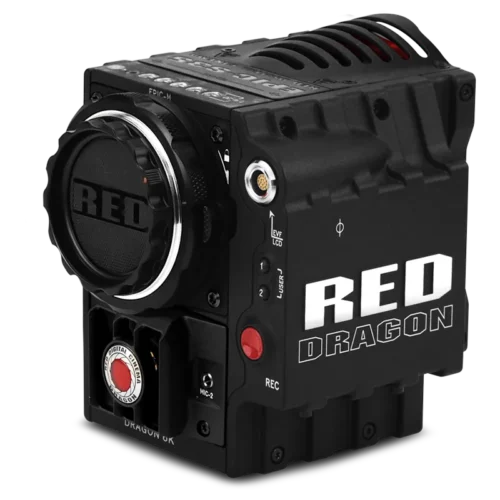

With the 6K RED EPIC DRAGON sensor, you can capture over 9x more pixels than HD. Unrivaled detail and impressive native exposure eclipse 35mm film in both latitude and image density. Industry leading specs distinguish the EPIC DRAGON as a model for image innovation, helming the evolution of digital cinema technology.
Resolution is more than just attention to detail. From large objects to granule textures, 6K images cultivate the nuance of every image, leaving nothing behind. Improvements to micro-contrast and MTF produce a cleaner image, drastically reducing moiré and aliasing artifacts. When outputting 6K files to 4K or HD, your image will appear more refined and detailed compared to those captured at lower resolutions. The choice is simple; Bigger is better.
| SENSOR | 19 MEGAPIXEL DRAGON™ |
|---|---|
| PIXEL ARRAY | 6144 (h) x 3160 (v) |
| S/N RATIO | 80 dB |
| DYNAMIC RANGE | 16.5+ stops |
| MAX IMAGE AREA | 6144 (h) x 3160 (v) |
| LENS COVERAGE | 30.7mm (h) x 15.8mm (v) x 34.5 mm (d) |
| ACQUISITION FORMATS | 6K RAW (2:1, 2.4:1) 5K RAW (Full Frame, 2:1, 2.4:1 and Anamorphic 2:1) 4.5K RAW (2.4:1) 4K RAW (16:9, HD, 2:1 and Anamorphic 2:1) 3K RAW (16:9, 2:1 and Anamorphic 2:1) 2K RAW (16:9, 2:1 and Anamorphic 2:1) 1080p RGB (16:9) 720p RGB (16:9) |
| PROJECT FRAME RATES | 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 fps, all resolutions |
| DELIVERY FORMATS* | 4K : DPX, TIFF, OpenEXR (RED RAY via optional encoder) 2K : DPX, TIFF, OpenEXR (RED RAY via optional encoder) 1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG Avid AAF, MXF. 1080p 4.2.0, 720p 4:2:0 : H.264, .MP4 |
| PROGRAM OUTPUT | HD-SDI Clean Feed SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio |
| MONITOR OUTPUT | HD-SDI and HDMI with Frame Guides and Look Around 2K RGB, 1080p RGB or 4:2:2, 720p RGB or 4:2:2 SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio |
| DIGITAL MEDIA REDMAG (SSD) Module | (64, 128, 256, 512GB Media) |
| REDCODE™ | Compression choices of 18:1 to 3:1 12 and 16-bit RAW : Compression choices of 18:1 to 3:1 1-100 fps 6K 1-120 fps 5K, 4.5K 1-150 fps 4K 1-200 fps 3K 1-300 fps 2K |
| AUDIO | 2 channel, uncompressed, 24-bit, 48kHz. Optional 4 channel, and AES / EBU digital audio. |
| MONITORING OPTIONS | RED Touch 5.0″ LCD RED PRO 7″ LCD RED Touch 7.0″ LCD RED Touch 9.0″ LCD BOMB EVF (LCOS) RED BOMB EVF (OLED) |
| REMOTE CONTROL | Wireless, Ethernet, RS232, GPI Trigger |
| WEIGHT | 5 lbs (Body only) |
| CONSTRUCTION | Aluminum Alloy |
| TEMPERATURE RANGES | Operating Range: 0˚C to +40˚C (32˚F to 104˚F) Storage Range: -20˚C to +50˚C (-4˚F to 122˚F) |
