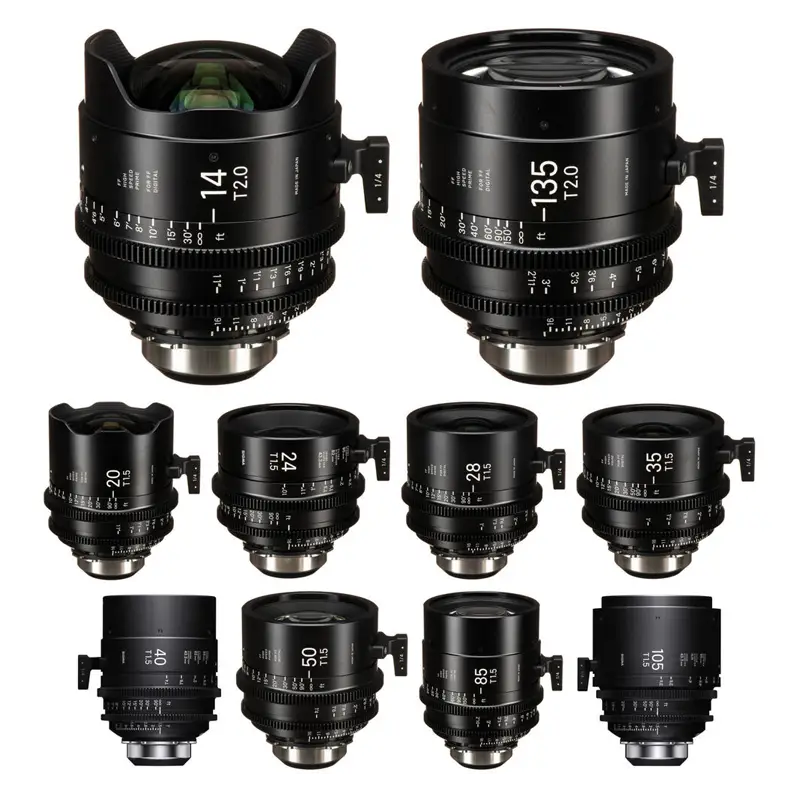

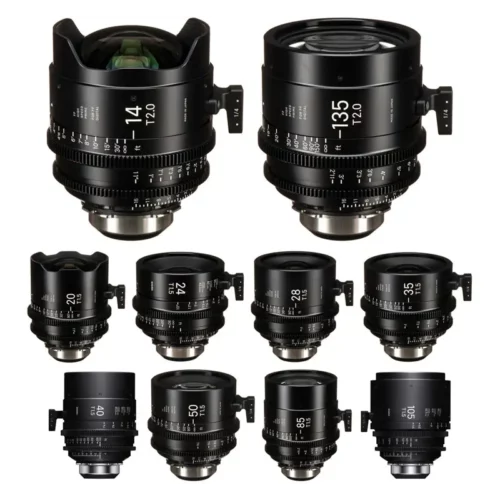

The Sigma HS Cine incorporates more non-coated optical elements to achieve unrivaled expression. It retains the high resolution capability that SIGMA CINE LENS is well known for, and offers a unique combination of low contrast and artistic flare/ghost in the image.
FF Classic Prime Line has implemented newly developed coatings on the glass elements and offers consistent T value across the lineup (14mm and 135mm at T3.2 and the rest of the lenses at T2.5). This will greatly contribute to the effective workflow in postproduction. Furthermore, it is compatible with the communication protocol of Cooke “/i Technology”, thus an ideal tool for shooting and editing with the latest technology, such as VFX. A special coating is implemented on the front and rear elements so that the lens durability is ensured as with all other cine lenses from SIGMA.
14mm T3.2 FF | 20mm T2.5 FF | 24mm T2.5 FF | 35mm T2.5 FF | 50mm T2.5 FF | 85mm T2.5 FF | 135mm T3.2 FF | ||
| Focal Length | 14 mm | 20mm | 24 mm | 35 mm | 50 mm | 85 mm | 135 mm | |
| Aperture | T3.2 - T25 | T2.5 - T25 | T2.5 - T25 | T2.5 - T25 | T2.5 - T25 | T2.5 - T25 | T3.2 - T25 | |
| Number of Diaphragm Blades | - | - | - | - | - | - | - | |
| Minimum Focusing Distance | 0.27 m / 11″ | 0.28 m / 11″ | 0.25 m / 11″ | 0.3 m / 1' | 0.4 m / 1'4 | 0.85 m / 2'10 | 0.88 m / 2'11 | |
| Magnification Ratio | 01:09.8 | 01:07.1 | 01:05.3 | 01:05.2 | 01:05.6 | 01:08.5 | 1:05 | |
| Filter size | - | - | M 82 x 0.75 mm | M 82 x 0.75 mm | M 82 x 0.75 mm | M 86 x 1.0 mm | M 82 x 0.75 mm | |
| Length | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | |
| 111.5 mm / 4.4″ | 110 mm / 4.4″ | 87 mm / 3.5″ | 87 mm / 3.5″ | 94 mm / 3.8″ | 118.9 mm / 4.7″ | 106.9 mm / 4.3″ | ||
| Weight | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | PL Mount (/i Technology compatible) | |
| 1.4 kg / 3 lb | 1.3 kg / 2.7 lb | 1.1 kg / 2.3 lb | 1.1 kg / 2.3 lb | 1.2 kg / 2.7 lb | 1.4 kg / 3 lb | 1.5 kg / 3.2 lb | ||
| FF | 104.3° | 84.0° | 73.7° | 54.4° | 39.6° | 23.9° | 15.2° | |
| S35 | 82.6° | 63.2° | 54.3° | 38.7° | 27.6° | 16.5° | 10.4° | |
| APS-C | 80.5° | 61.3° | 52.6° | 37.4° | 26.7° | 15.9° | 10.0° | |
| Edition Number | 17 | 17 | 17 | 17 | 17 | 17 | 17 | |
