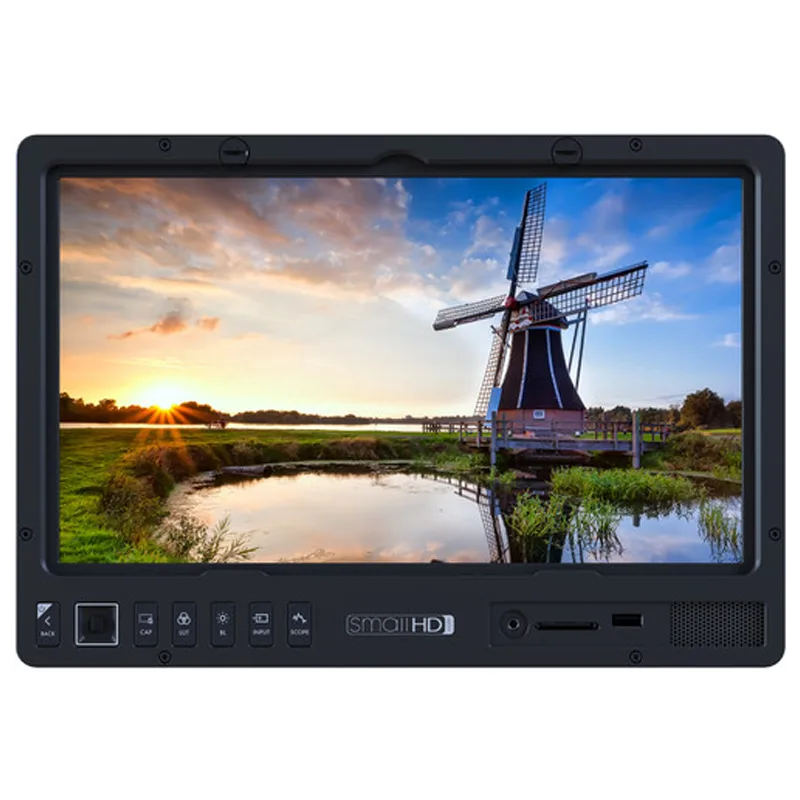

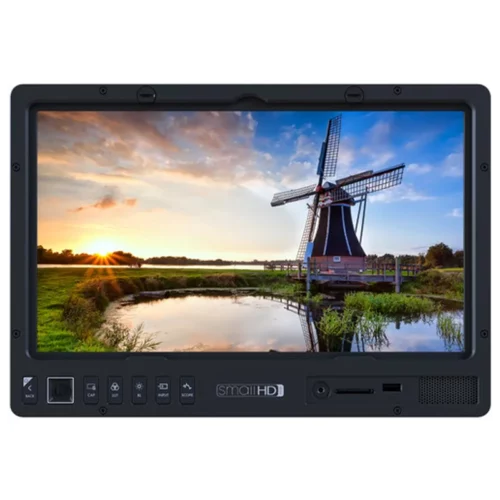

Small HD 13” 1303

Experience unparalleled color and contrast fidelity beyond conventional monitoring with the SmallHD 1303 HDR 13″ Production Monitor. Equipped with HDR preview capabilities supported by a 10-bit Color Intelligence engine featuring calibration options, the 1303 showcases a broad brightness range, accommodating log formats and expanded-range picture styles. Its 1500 cd/m², daylight-viewable, 1920×1080 Full HD resolution display panel can be powered by either of its two SDI inputs or an HDMI input, each with a loop output for seamless integration with other equipment. All functionalities are seamlessly accessed via the innovative Page Builder OS. Crafted with full aluminum construction and provision for separately available user-replaceable polycarbonate screen protectors, SmallHD ensures durability to withstand the demanding environments of both studio and field production.

Description

Display:

  • Display Size: 13.00″ / 33.0 cm
  • Native Resolution: 1920 x 1080
  • Touchscreen: No
  • HDR Support: Yes
  • Video I/O:
    • 1x HDMI Input
    • 1x HDMI Output
    • 2x BNC (3G-SDI) Input
    • 2x BNC (3G-SDI) Output
  • Power Consumption: 25 W (Typical), 39 W (Maximum)
  • Mounting: 6x 1/4″-20 Female

Display (continued):

  • Panel Type: IPS-Type LCD
  • Screen Area: 11.59 x 6.52″ / 29.44 x 16.56 cm
  • Aspect Ratio: 16:9
  • Viewing Angle: 178°
  • Maximum Brightness: 1500 nits / cd/m2
  • Contrast Ratio: 1140:1
  • Bit Depth / Color Support: 10-Bit (1.07 Billion Colors)
  • Color Gamut: 100% Rec. 709

Inputs / Outputs:

  • Embedded Audio: HDMI, SDI
  • Audio I/O: 1x 1/8″ / 3.5 mm Headphone Output
  • Power I/O:
    • 1x XLR 4-Pin (12 VDC) Input
    • 1x LEMO 2-Pin (4 A / 12 VDC) Input
  • Other I/O: 2x USB-A 2.0 Input

Format Support:

  • Video Format: HDMI (8/10/12-Bit 4:4:4/4:2:2 YCC), SDI (10-Bit 4:2:2)

Power:

  • Input Power: 110 to 240 VAC, 50 / 60 Hz at 6 to 15 A, 12 to 34 VDC at 18 A

Mounting:

  • Mounting: 6x 1/4″-20 Female

Environmental:

  • Operating Temperature: 32 to 100°F / 0 to 38°C
  • Storage Temperature: 33 to 115°F / 0 to 46°C
