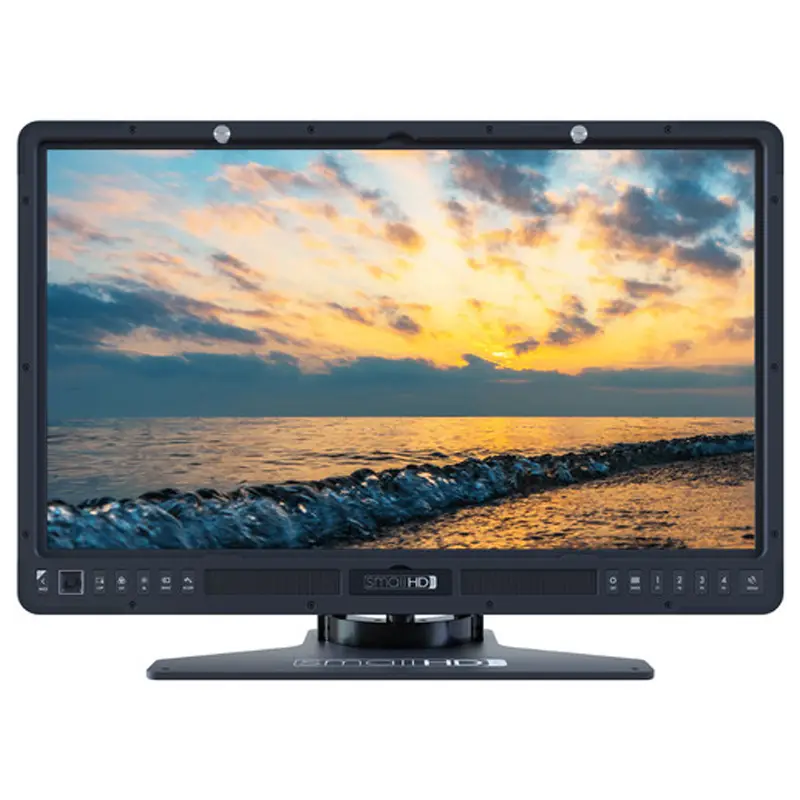

Small HD 2403 24”

Experience superior color and contrast rendition with the SmallHD 2403 HDR 24″ Production Monitor, transcending the limitations of conventional monitoring. Equipped with HDR preview capability and supported by a 10-bit Color Intelligence engine with calibration features, the 2403 showcases an expansive brightness range, accommodating log formats and expanded-range picture styles. Its 1000 cd/m², daylight-viewable, 1920×1080 Full HD resolution display panel can be powered by either of its two SDI inputs or an HDMI input, each featuring a loop output for seamless gear integration without requiring a splitter. All monitor functionalities are effortlessly accessed through the intuitive Page Builder OS. Engineered with full aluminum construction and compatibility with separately available user-replaceable polycarbonate screen protectors, the SmallHD 2403 is designed to withstand the demanding conditions of studio and field production.

Description

Display:

  • Panel Type: IPS
  • Screen Size: 24″ / 61 cm
  • Resolution: 1920 x 1080
  • Pixel Density: 93 PPI
  • Aspect Ratio: 16:9
  • Active Area: 20.74 x 11.67
  • Brightness: 1000 cd/m²
  • Contrast Ratio: 3000:1
  • Color Gamut: 100% REC709
  • Bit Depth: 10-bit
  • Viewing Angle: 178°
  • Backlight Type: LED (adjustable)

Technical:

  • Video I/O:
    • Inputs: 2 x SDI, 1 x HDMI
    • Outputs: 2 x SDI, 1 x HDMI
  • Input Formats:
    • SDI: 8-bit YCC 4:2:2
      • 1080p23.98/24/25/29.97/30/50/59.94/60
      • 1080PsF23.98/24/25/29.97/30
      • 1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
      • 720p23.98/24/25/29.97/30/50/59.94/60
    • HDMI: 8-bit YCC 4:2:2, 8/10/12-bit RGB and YCC 4:4:4
      • 1080p23.98/24/25/29.97/30/50/59.94/60
      • 1080PsF23.98/24/25/29.97/30
      • 1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
      • 720p23.98/24/25/29.97/30/50/59.94/60
      • 576p50 (high-speed 576p100)
      • 480p59.94/60 (high-speed 480p119.88/120)
    • Audio: HDMI and SDI embedded
  • Output Formats:
    • SDI: 8-bit YCC 4:2:2
      • 1080p23.98/24/25/29.97/30/50/59.94/60
      • 1080PsF23.98/24/25/29.97/30
      • 1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
      • 720p23.98/24/25/29.97/30/50/59.94/60
    • HDMI: 8-bit YCC 4:2:2, 8-bit RGB and YCC 4:4:4
      • 1080p23.98/24/25/29.97/30/50/59.94/60
      • 1080PsF23.98/24/25/29.97/30
      • 1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
      • 720p23.98/24/25/29.97/30/50/59.94/60
      • 576p50 (high-speed 576p100)
      • 480p59.94/60 (high-speed 480p119.88/120)
