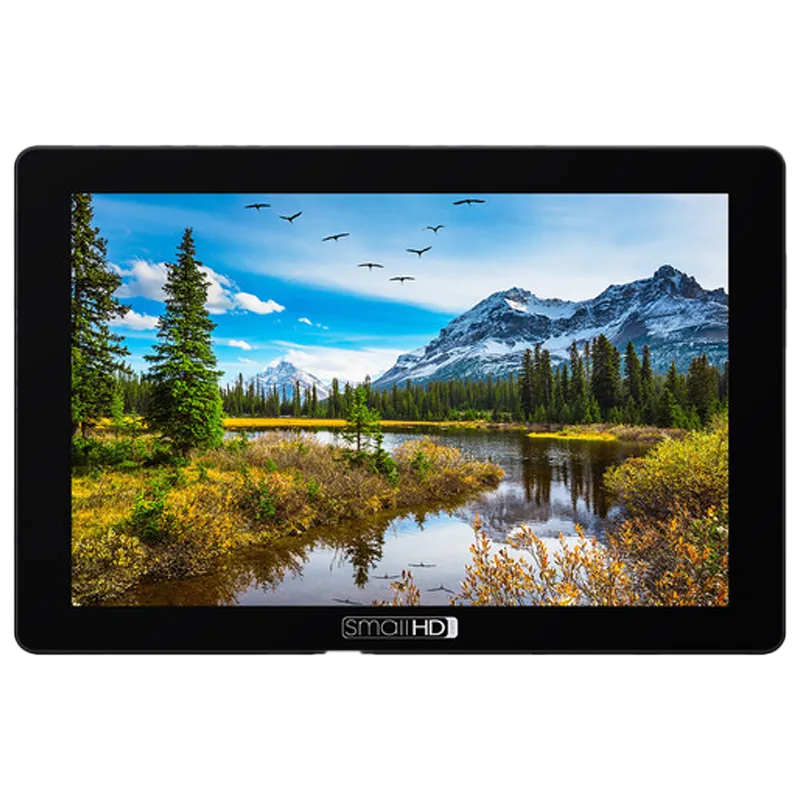

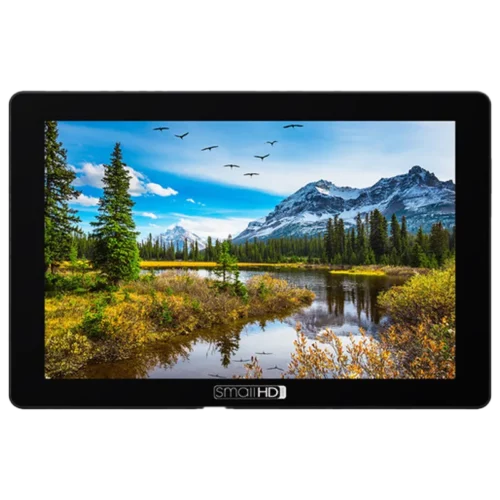

Small HD 7” 702

The SmallHD 702 Touch 7″ On-Camera Monitor boasts an IPS LCD panel delivering a crisp resolution of 1920 x 1200. Its IPS touchscreen ensures broad off-axis viewing angles with minimal color or contrast distortion. With a maximum brightness of 1500 cd/m², it excels in outdoor usage. While presenting images in 8-bits per color channel, the monitor internally processes at 10-bit depth. Leveraging touchscreen functionality, the SmallHD OS3 software package empowers users to craft and save custom looks conveniently.

Equipped with interchangeable battery plates, the monitor accommodates a variety of battery types, though it comes bundled with a dual L-series battery plate. Featuring 3G-SDI and HDMI inputs and outputs, alongside a headphone jack for audio monitoring, the 702 Touch offers versatile connectivity options. Its array of monitoring capabilities includes waveform analysis, custom LUT support, anamorphic de-squeeze, and audio level meters.


Display Size: 7.0″ / 17.8 cm Native Resolution: 1920 x 1200 Touchscreen: Yes HDR Support: Yes Video I/O:

  • 1x BNC (3G-SDI) Output
  • 1x BNC (3G-SDI) Input/Output
  • 1x HDMI Output
  • 1x HDMI Input Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC Video Format: SDI (10-Bit 4:2:2 YCC):
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080PsF: 30/29.97/25/24/23.98
  • 1080i: 120/119.88/100/60/59.94/50
  • 720p: 60/59.94/50/30/29.97/25/24/23.98
  • 480i: 59.94
  • 576i HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC):
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
  • 576p: 200/100/50
  • 480p: 240/239.76/120/119.88/60/59.94
  • 576i: 200/100/50
  • 480i: 240/239.76/120/119.88/60/59.94 Battery Type: 1x L-Series, V-Mount, or Gold Mount (Interchangeable Mount) Power Consumption: 17 W (Maximum) Mounting: 4x 1/4″-20 Female
