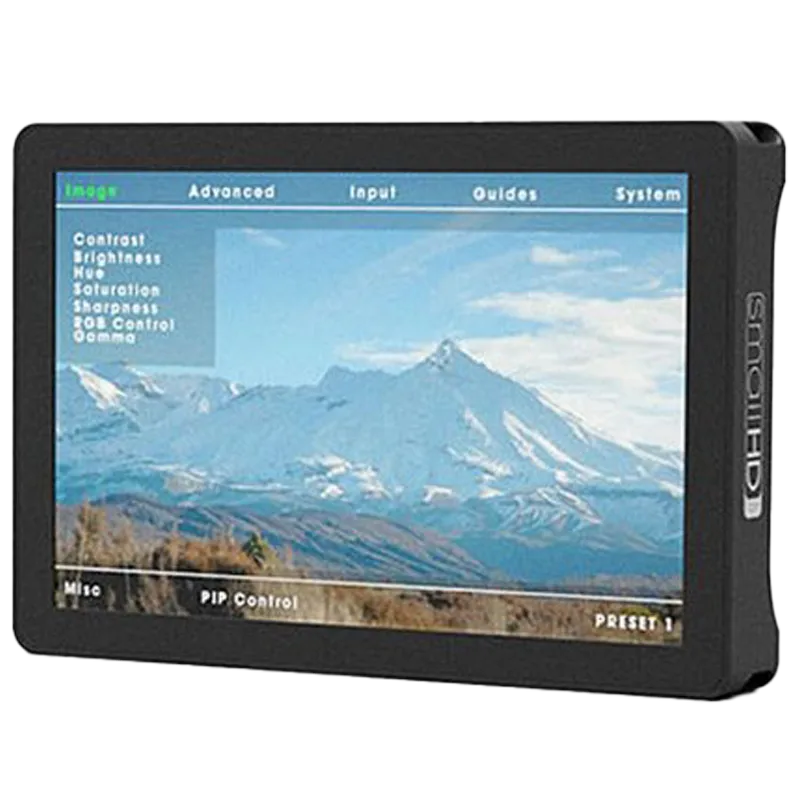

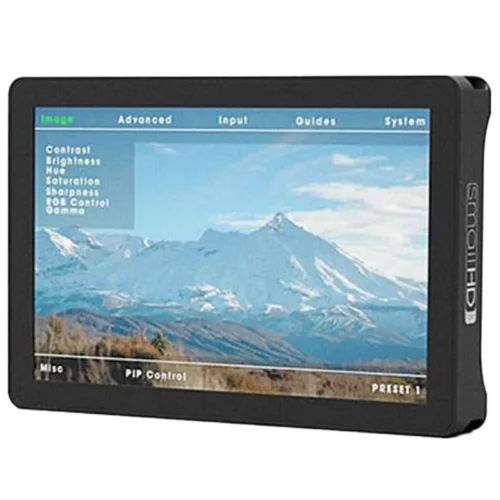

Small HD 7” AC-7

The SmallHD AC7 presents advanced focus, exposure, and framing utilities within its 7-inch IPS LCD display boasting a resolution of 1280 x 800 HD. It facilitates connectivity through HDMI, Component, and Composite inputs. Navigation through its menu is effortless with a scroll wheel positioned on top, allowing seamless exploration of its myriad features and enabling selections with a push-in action. Adjacent to the scroll wheel are two customizable function buttons, offering flexibility to assign desired features like Focus Assist. Additionally, the backlight can be finely adjusted across a spectrum of brightness levels, catering to various shooting environments, be it bright outdoor scenarios or controlled studio setups.


Display: 7″ (17.8 cm) diagonal IPS LCD
Resolution: 1280 x 800
Color Depth: 8 bit
Pixels Per Inch: 217 ppi
Brightness: 400 nits
Contrast Ratio: 800:1
Viewing Angle: 160°
Color Gamut: ~50% NTSC

  • 1x HDMI input
  • 1x Component RCA input
  • 1x Composite RCA input
  • 1x USB firmware input / 5 V output


Material: Aluminum skeleton, rubberized ABS housing
Mounting Threads: 2x 1/4″-20
Power Consumption: 12 W
Input Range: 7 – 18 VDC
Auxiliary Input: 5 V, 1 A via USB
Power Connector: Barrel
Dimensions: 6.9 x 4.6 x 1.2 inches (17.5 x 11.7 x 3 cm)
Weight: 0.75 lb (340 g)
