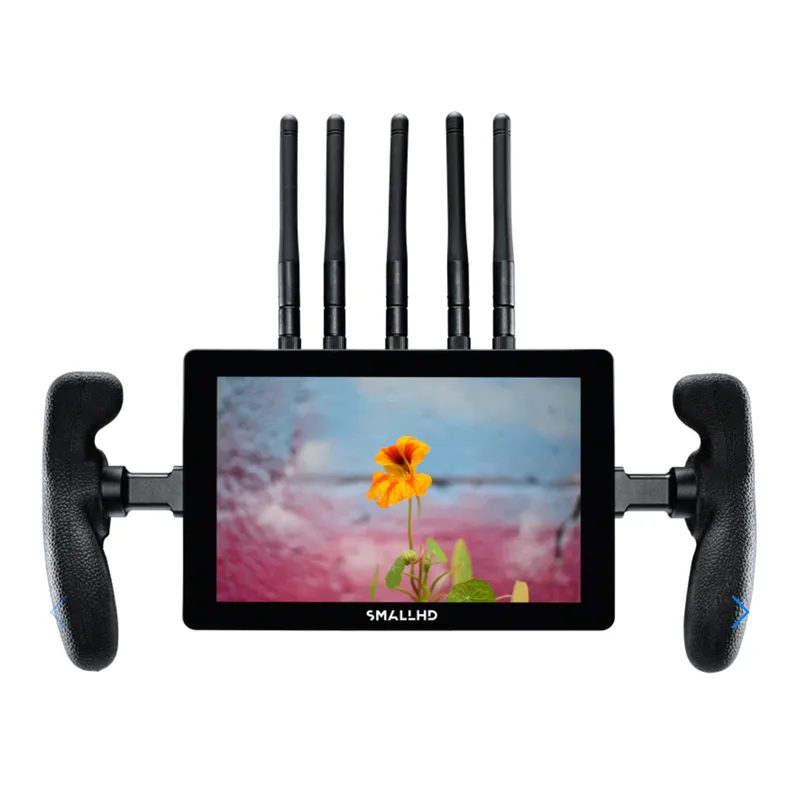

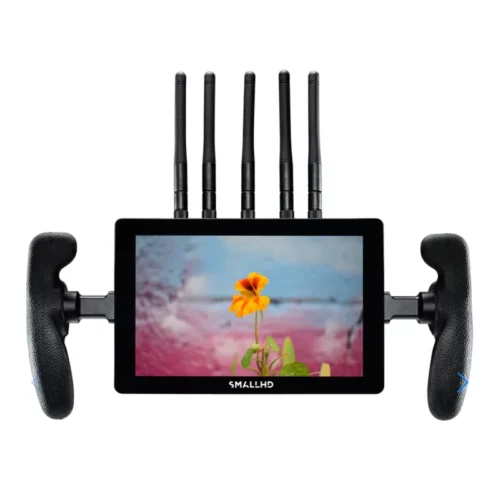

Small HD Indie 7 Bolt 6 RX

ndie 7 is the vivid, lightweight entry model into SmallHD’s professional 7-inch touchscreen monitor series. Featuring hyperresponsive touchscreen technology, backed by 1000nits of brightness for daylight visibility. With the addition of Bolt 4K RX Monitor Module, receive cable-free 4K HDR wireless video from any Bolt 4K series transmitter at a distance of up to 750ft (228m). Utilize 1:1 Pixel Mapping to punch-in on the added resolution and achieve tack-sharp critical focus. Includes Monitor Handles for handheld conversion and a Gold Mount battery plate capable of battery power pass-through to both RX Module and monitor.

Description

Display

  • Panel Type: IPS LCD Touchscreen
  • Diagonal Size: 7.02 inches
  • Resolution: 1920×1200 pixels
  • Pixel Density: 323 ppi
  • Aspect Ratio: 16:9
  • Active Area: 5.95 x 3.72 inches
  • Max Brightness: 1000 Nits
  • Contrast: 1000:1
  • Gamut: 100% rec709
  • Color Depth: 10-bit Processing (8-bit panel)
  • Viewing Angle: 160 degrees
  • Backlight Type: LED
  • Adjustable Backlight: Yes

Input Signal

  • 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
  • HD-SDI Input Types: YCC 4:2:2 @ 10-bits: (Various resolutions and frame rates)
  • SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  • HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: (Various resolutions and frame rates)
  • Audio Input Types: HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels

Output Signal

  • 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: (Various resolutions and frame rates)
  • HD-SDI Output Types: YCC 4:2:2 @ 10-bits: (Various resolutions and frame rates)
  • SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  • HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: (Various resolutions and frame rates)
  • Audio Output Types: HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

  • SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
  • HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
  • Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
  • Power In: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
  • USB: 1x USB 2.0 Micro-B receptacle
