Sony PVM A170 OLED 17″

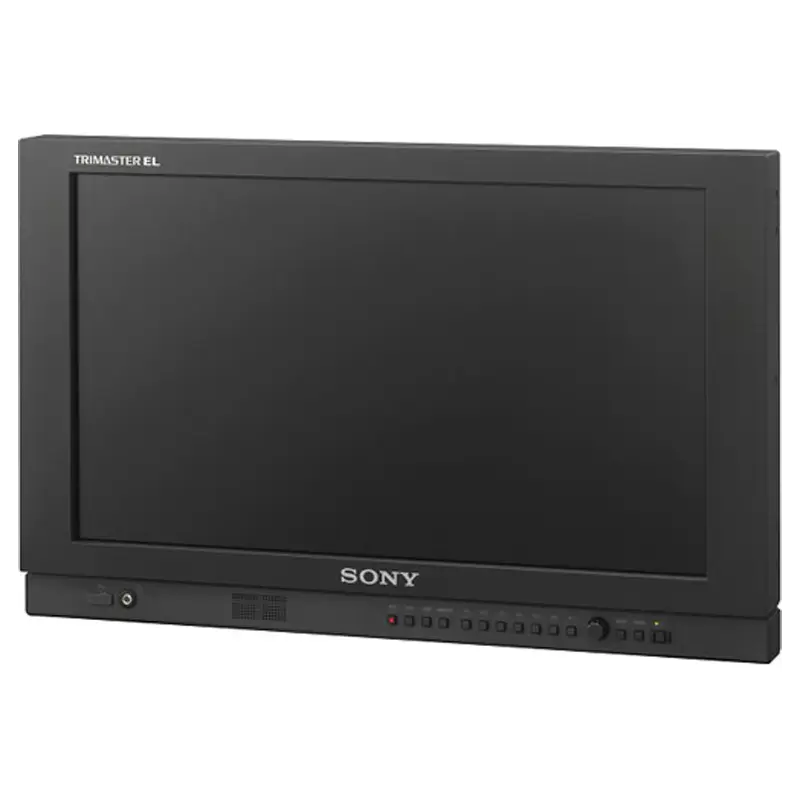

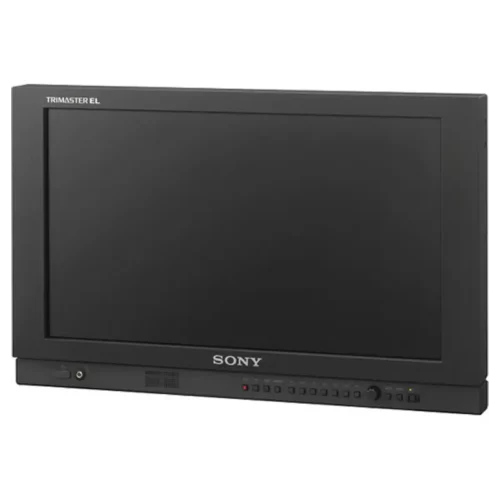

The Sony PVMA170 17″ Professional OLED Production Monitor is a versatile tool suitable for both field and studio environments. Boasting a 16.5″ diagonal OLED panel with a native resolution of 1920 x 1080, it offers exceptional image quality. Leveraging OLED technology, each pixel can be individually switched off, resulting in true black reproduction, unlike traditional LCD displays.

Connectivity options are extensive, with support for standard and high-definition video sources via SDI or HDMI, as well as analog standard-definition sources through composite input. The PVMA170 features two SDI inputs with loop-through output, supporting 3G-SDI, HD-SDI, and SD-SDI signals at resolutions up to 1080p60, including support for various frame rates such as 24 fps. The HDMI input supports a range of resolutions and frame rates, including 1080p60, 24p, and 23.98p, as well as standard definition and computer resolutions.

For audio monitoring, the monitor offers a 3.5mm stereo mini jack audio input, along with a front panel 3.5mm headphone jack and a built-in 1W speaker. With its comprehensive connectivity and high-quality display, the Sony PVMA170 is a valuable asset for professional video production workflows.

Description

Panel Type: OLED
Display Size: 16.5″ / 41.9 cm
Active Area: 14.5 x 8.1″ / 368.30 x 205.74 mm
Screen Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle:

  • Horizontal: 178° (89/89)
  • Vertical: 178° (89/89)
    Bit Depth / Color Support: 10-Bit (1.07 Billion Colors)

I/O:

  • Video:
    • 2 x BNC (SD-SDI) Output
    • 1 x BNC (Composite) Output
    • 2 x BNC (SD-SDI) Input
    • 1 x HDMI Type A Input
    • 1 x BNC (Composite) Input
  • HDCP Support: Yes
  • Audio I/O:
    • 1x 1/8″ / 3.5 mm Input
    • 1x 1/8″ / 3.5 mm Monitor Output
    • 1x 1/8″ / 3.5 mm Headphone Output
  • Built-In Speaker: 1x 1 W
  • Power I/O: 1x XLR 4-Pin Input
  • Other I/O:
    • 1x RJ45 (Parallel)
    • 1x RJ45 (Serial)
  • Card Slot: No

Format Support:

  • Video Format:
    • SDI:
      • 1080p: 23.98/24/60
      • 1080PsF: 23.98/24
      • 1080i: 60
      • 720p: 50/60
      • 576p
      • 480p
    • HDMI:
      • 1080p: 23.98/24/60
      • 1080i: 60
      • 720p: 50/60
      • 576p
      • 480p
    • Composite:
      • 576i
      • 480i
  • PC Resolutions:
    • 1360 x 768
    • 1280 x 1024
    • 1280 x 768
    • 640 x 480

Power:

  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 0.9 to 0.5 A
  • DC Input Power: 12 to 16 VDC
  • Battery Type: No

Mounting:

  • Mounting-Hole Pattern: 100 x 100 mm
