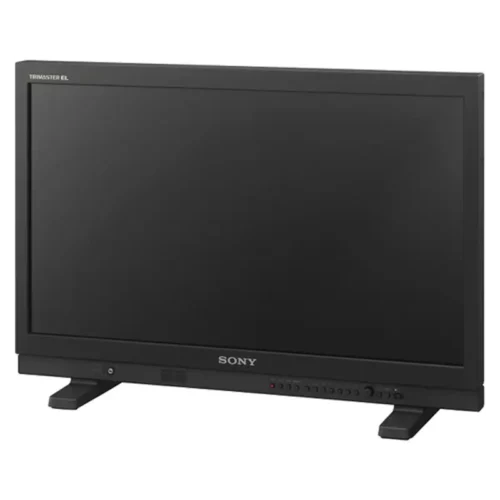

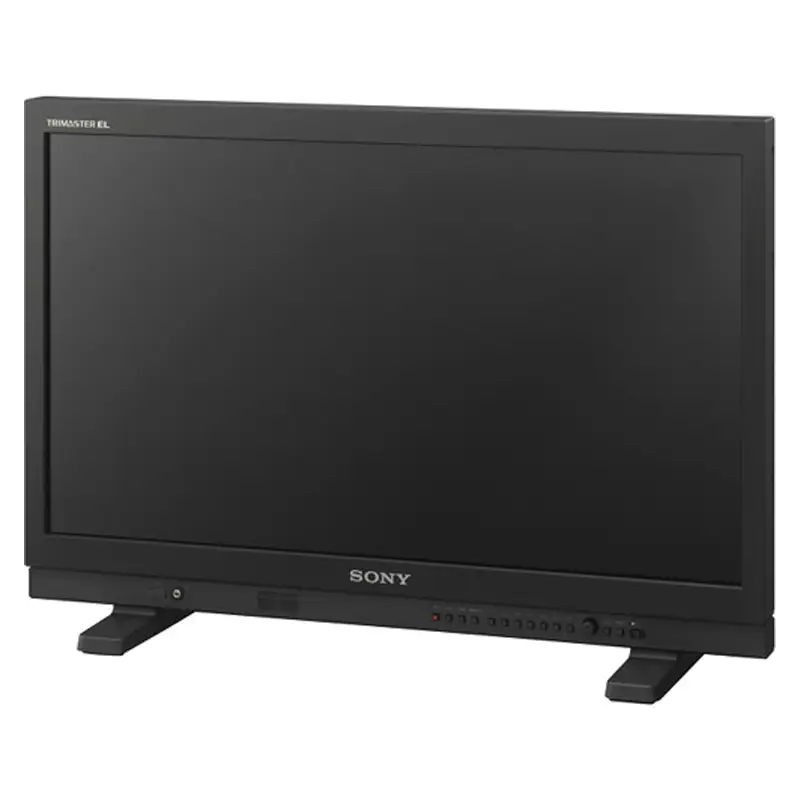

Sony PVM A250 OLED 25″

The Sony PVMA250 25″ Professional OLED Production Monitor, featuring Version 2.0 Firmware, is a versatile solution suitable for both field and studio applications. Boasting a 24.5″ diagonal OLED panel with a native resolution of 1920 x 1080, it delivers exceptional image quality. Utilizing OLED technology, each pixel can be individually switched off, ensuring true black reproduction, unlike traditional LCD displays.

Connectivity options are extensive, with support for standard and high-definition video sources via SDI or HDMI, as well as analog standard-definition sources through composite input. The PVMA250 offers two SDI inputs with loop-through output, supporting 3G-SDI, HD-SDI, and SD-SDI signals at resolutions up to 1080p60, including various frame rates such as 24 fps. Additionally, the HDMI input supports a range of resolutions and frame rates, including 1080p60, 24p, and 23.98p, as well as standard definition and computer resolutions.

For audio monitoring, the monitor features a composite input with loop-through output and a 3.5mm stereo mini jack audio input. Users can monitor embedded audio locally via the front panel 3.5mm headphone jack, while a built-in 1W speaker provides additional audio playback capability. With its comprehensive connectivity and high-quality display, the Sony PVMA250 is an essential tool for professional video production workflows.

Description

Panel Type: OLED
Display Size: 24.5″ / 62.2 cm
Aspect Ratio: 16:9
Viewing Angle:

  • Horizontal: 178° (89/89)
  • Vertical: 178° (89/89)
    Bit Depth / Color Support: 10-Bit (1.07 Billion Colors)
    Image Controls: Focus Peaking, Image Flip, Screen Markers, Waveform

I/O:

  • Video:
    • 2 x BNC (SD-SDI) Output
    • 1 x BNC (Composite) Output
    • 2 x BNC (SD-SDI) Input
    • 1 x HDMI Type A Input
    • 1 x BNC (Composite) Input
  • HDCP Support: Yes
  • Audio I/O:
    • 1x 1/8″ / 3.5 mm Input
    • 1x 1/8″ / 3.5 mm Monitor Output
    • 1x 1/8″ / 3.5 mm Headphone Output
  • Built-In Speaker: 1x 1 W
  • Other I/O:
    • 1x RJ45 (Parallel)
    • 1x RJ45 (Serial)

Format Support:

  • Video Format:
    • SDI:
      • 1080p: 23.98/24/60
      • 1080PsF: 23.98/24
      • 1080i: 60
      • 720p: 50/60
      • 576p
      • 480p
    • HDMI:
      • 1080p: 23.98/24/60
      • 1080i: 60
      • 720p: 50/60
      • 576p
      • 480p
    • Composite:
      • 576i
      • 480i
  • PC Resolutions:
    • 1360 x 768
    • 1280 x 768
    • 640 x 480

Power:

  • Battery Type: No
  • Power Consumption:
    • 115 W (Maximum)
    • 80 W (Typical)

Mounting:

  • Mounting-Hole Pattern: 100 x 100 mm

Environmental:

  • Operating Temperature: 32 to 95°F / 0 to 35°C
  • Operating Humidity: 0 to 90%
  • Storage Temperature: -4 to 140°F / -20 to 60°C

General:

  • Dimensions:
    • 23.8 x 15.2 x 2.6″ / 60.5 x 38.7 x 6.6 cm (Including)
    • 23.8 x 16.1 x 6.5″ / 60.5 x 40.9 x 16.5 cm (Including Stand)
  • Weight: 13.4 lb / 6.1 kg, Including
