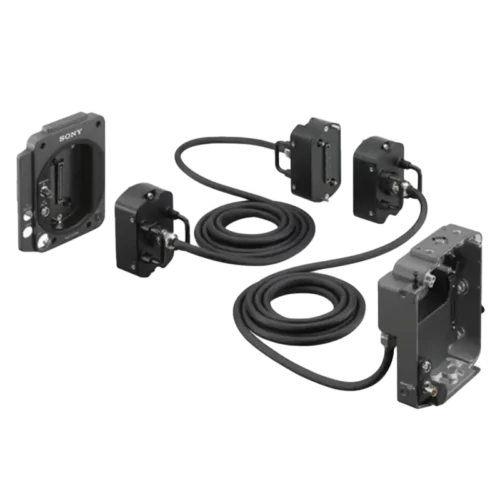

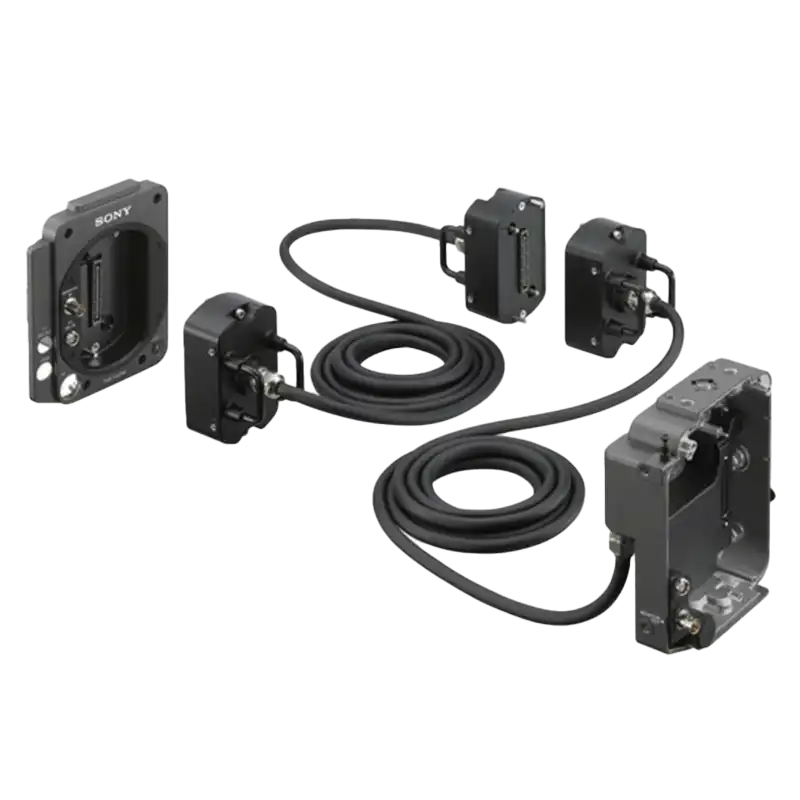

Sony Rialto Camera Extension System (CBK-3610XS)

The Sony Rialto Camera Extension System (CBK-3610XS) is designed to enhance the versatility of the Sony VENICE 1 camera by allowing the separation of the image sensor block from the camera body. This separation is achieved through a 9-foot cable, with an optional 9-foot extension, enabling a maximum distance of 18 feet between the sensor and the camera body. This configuration is particularly beneficial for shooting in tight spaces, mounting on gimbals, or achieving unique camera angles.

Categories: Cameras, Sony

Request Quote

Description

Key Features:

Extended Flexibility: The system allows the sensor block to be positioned up to 18 feet away from the camera body, facilitating shots in confined or challenging environments.
Maintained Functionality: All camera functions, including the 8-step ND filter system and Dual Base ISO, remain operational when using the extension system.
Additional Outputs: The extension system provides an HD-SDI monitor output and 12/24 VDC power outputs at the sensor end, allowing for accessory integration.
Mounting Options: The sensor block case includes multiple mounting points (1/4″-20 and 3/8″-16 threads) for various rigging configurations.
